学习android:fitsSystemWindows属性

对于android:fitsSystemWindows这个属性你是否感觉又熟悉又陌生呢?

熟悉是因为大概知道它可以用来实现沉浸式状态栏的效果,陌生是因为对它好像又不够了解,这个属性经常时灵时不灵的。

其实对于android:fitsSystemWindows属性我也是一知半解,包括我在写《第一行代码》的时候对这部分知识的讲解也算不上精准。但是由于当时的理解对于我来说已经够用了,所以也就没再花时间继续深入研究。

而最近因为工作的原因,我又碰上了android:fitsSystemWindows这个属性,并且我之前的那些知识储备已经不够用了。所以这次趁着这个机会,我把这部分知识又重新学习了一遍,并整理成一篇文章分享给大家。

我们都不会无缘无故去接触一个属性。我相信用到android:fitsSystemWindows的朋友基本都是为了去实现沉浸式状态栏效果的。这里我先解释一下什么是沉浸式状态栏效果。

Android 手机顶部用于显示各种通知和状态信息的这个栏叫做状态栏。

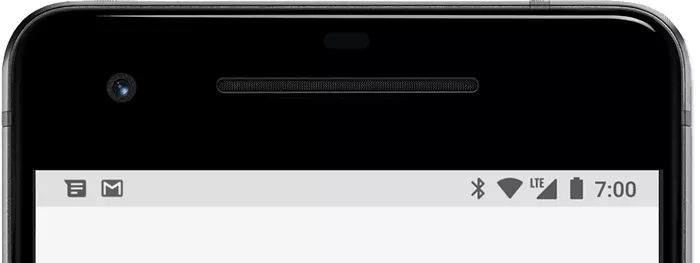

状态栏

通常情况下,我们应用程序的内容都是显示在状态栏下方的。但有时为了实现更好的视觉效果,我们希望将应用程序的内容延伸到状态栏的背后,这种就可以称之为沉浸式状态栏。

沉浸式状态栏

那么借助android:fitsSystemWindows属性是如何实现沉浸式状态栏效果的呢?这个属性为什么又总是时灵时不灵呢?接下来我们就来一步步学习和揭秘。

我相信按照绝大多数人的美好设想,android:fitsSystemWindows属性就应该像是一个开关一样,设置成 true 就可以打开沉浸式状态栏效果,设置成 false 就可以关闭沉浸式状态栏效果。但现实并非如此。

下面我们通过代码示例来演示一下。首先为了验证沉浸式状态栏的效果,需要将系统的状态栏改成透明色,代码如下所示:

class MainActivity : AppCompatActivity() {
    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContentView(R.layout.activity_main)
        window.statusBarColor = Color.TRANSPARENT
    }
}

接下来,我们给 activity_main.xml 的根布局加上android:fitsSystemWindows属性,并且给该布局设置了一个背景色用于观察效果:

<?xml version="1.0" encoding="utf-8"?>
<FrameLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:background="#ff66ff"
    android:fitsSystemWindows="true">

</FrameLayout>

运行一下代码,效果如下图所示:

android:fitsSystemWindows 属性

通过布局的背景色我们可以看出,该布局的内容并没有延伸到系统状态栏的背后。也就是说,即使设置了android:fitsSystemWindows属性,我们也没有实现沉浸式状态栏效果。

但是不要着急,接下我们只需要做出一点小修改,如下所示:

<?xml version="1.0" encoding="utf-8"?>
<androidx.coordinatorlayout.widget.CoordinatorLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:background="#ff66ff"
    android:fitsSystemWindows="true">

</androidx.coordinatorlayout.widget.CoordinatorLayout>

可以看到,这里只是将根布局从FrameLayout修改成了CoordinatorLayout,其他都没有任何变化。然后重新运行程序。效果如下图所示:

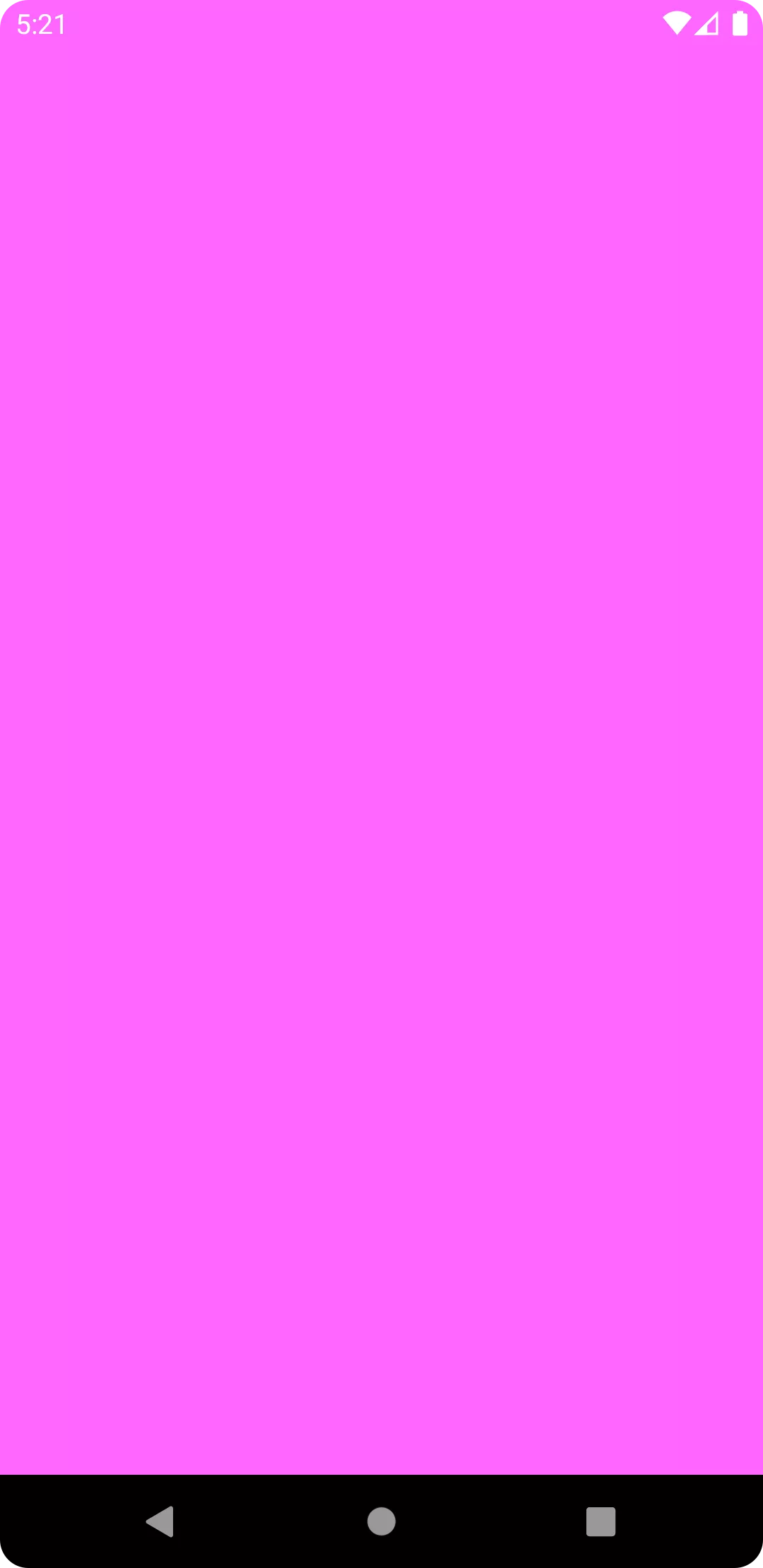

根布局从 FrameLayout 修改成了 CoordinatorLayout

这样就可以成功实现沉浸式状态栏效果了。

话说为什么android:fitsSystemWindows属性,设置在CoordinatorLayout布局上就能生效,设置在 FrameLayout 布局上就没有效果呢?

这是因为,xml 中的配置毕竟只是一个标记,如果想要在应用程序当中产生具体的效果,那还是要看代码中是如何处理这些标记的。

很明显,FrameLayout 对于android:fitsSystemWindows属性是没有进行处理的,所以不管设不设置都不会产生什么变化。

而 CoordinatorLayout 则不同,我们可以观察它的源码,如下所示:

private void setupForInsets() {
    if (Build.VERSION.SDK_INT < 21) {
        return;
    }

    if (ViewCompat.getFitsSystemWindows(this)) {
        if (mApplyWindowInsetsListener == null) {
            mApplyWindowInsetsListener =
                    new androidx.core.view.OnApplyWindowInsetsListener() {
                        @Override
                        public WindowInsetsCompat onApplyWindowInsets(View v,
                                WindowInsetsCompat insets) {
                            return setWindowInsets(insets);
                        }
                    };
        }
        // First apply the insets listener
        ViewCompat.setOnApplyWindowInsetsListener(this, mApplyWindowInsetsListener);

        // Now set the sys ui flags to enable us to lay out in the window insets
        setSystemUiVisibility(View.SYSTEM_UI_FLAG_LAYOUT_STABLE
                | View.SYSTEM_UI_FLAG_LAYOUT_FULLSCREEN);
    } else {
        ViewCompat.setOnApplyWindowInsetsListener(this, null);
    }
}

可以看到,这里当发现 CoordinatorLayout 设置了android:fitsSystemWindows属性时,会对当前布局的 insets 做一些处理,并且调用了下面一行代码:

setSystemUiVisibility(View.SYSTEM_UI_FLAG_LAYOUT_STABLE
                | View.SYSTEM_UI_FLAG_LAYOUT_FULLSCREEN);

这行代码是一切的关键所在。准确来讲,就是因为执行了这行代码,我们才能将布局的内容延伸到系统状态栏区域。

是不是感觉解密了?但事实上 CoordinatorLayout 所做的事情还远不止这些。

因为沉浸式状态栏其实会带来很多问题。让布局的内容延伸到状态栏的背后,如果一些可交互的控件被状态栏遮挡了怎么办?这样这些控件可能就无法点击和交互了。

CoordinatorLayout 为了解决这个问题,会对所有内部的子 View 都进行一定程度的偏移,保证它们不会被状态栏遮挡住。

比如我们在 CoordinatorLayout 当中再添加一个按钮:

<?xml version="1.0" encoding="utf-8"?>
<androidx.coordinatorlayout.widget.CoordinatorLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:background="#ff66ff"
    android:fitsSystemWindows="true">

    <Button
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="Button"
        />

</androidx.coordinatorlayout.widget.CoordinatorLayout>

运行一下程序,效果如下图所示:

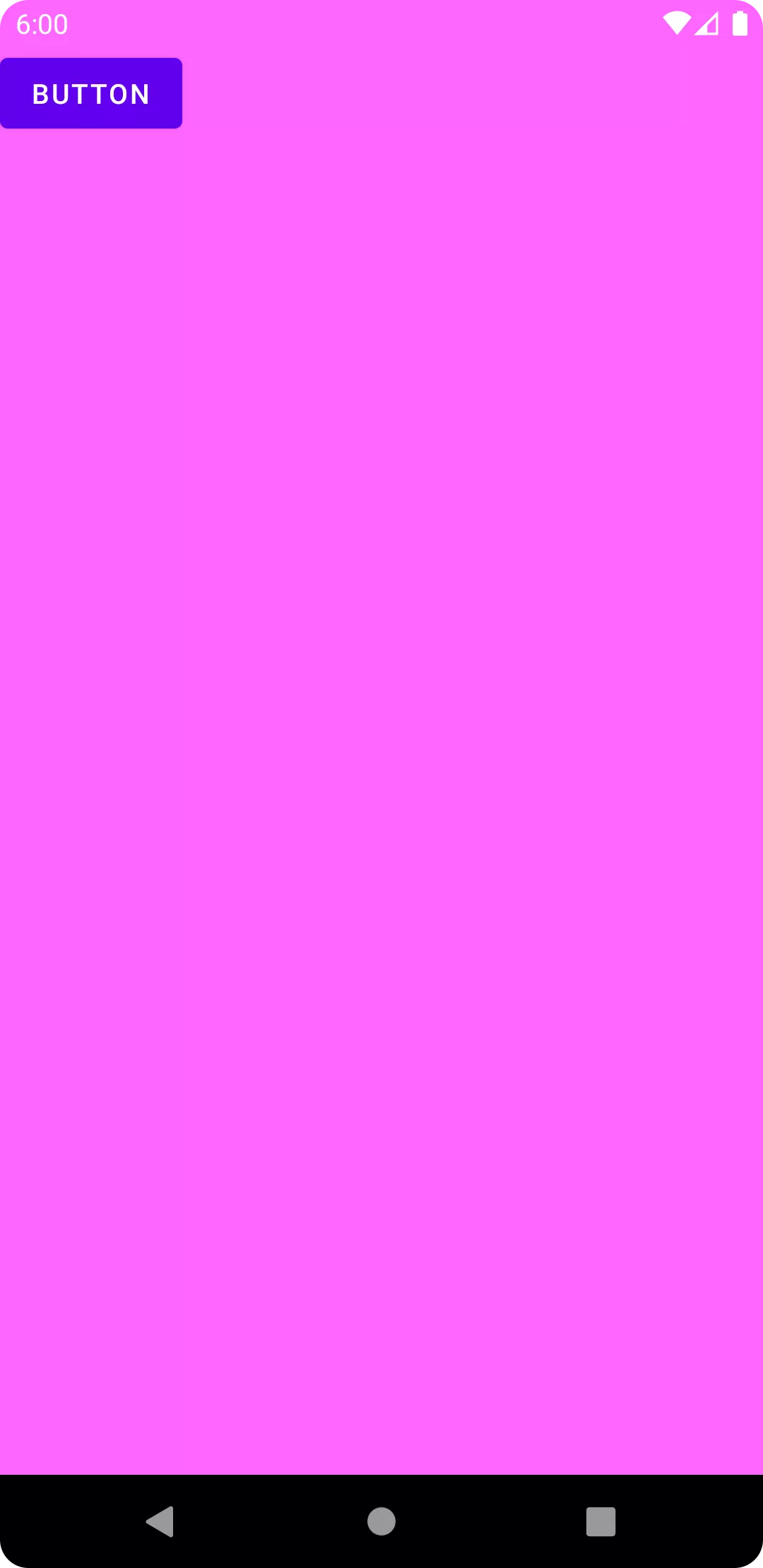

在 CoordinatorLayout 当中再添加一个按钮

可以看到,虽然 CoordinatorLayout 延伸到了状态栏区域,但是它所包含的按钮是不会进入状态栏区域的,这样就避免了可交互控件被遮挡的情况出现。

但有的朋友会说,如果有些子控件我就是想要让它也延伸到状态栏区域内呢?比如我在 CoordinatorLayout 内放了一张图片,按照这个规则,图片也是不会显示在状态栏背后的,这样就达不到想要的效果了。

我们可以来试一下这种场景。比如在 CoordinatorLayout 中再添加一个 ImageView,代码如下所示:

<?xml version="1.0" encoding="utf-8"?>
<androidx.coordinatorlayout.widget.CoordinatorLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:background="#ff66ff"
    android:fitsSystemWindows="true">

    <ImageView
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:scaleType="centerCrop"
        android:src="@drawable/bg"
        />

    <Button
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="Button"
        />

</androidx.coordinatorlayout.widget.CoordinatorLayout>

现在运行一下程序,效果如下图所示:

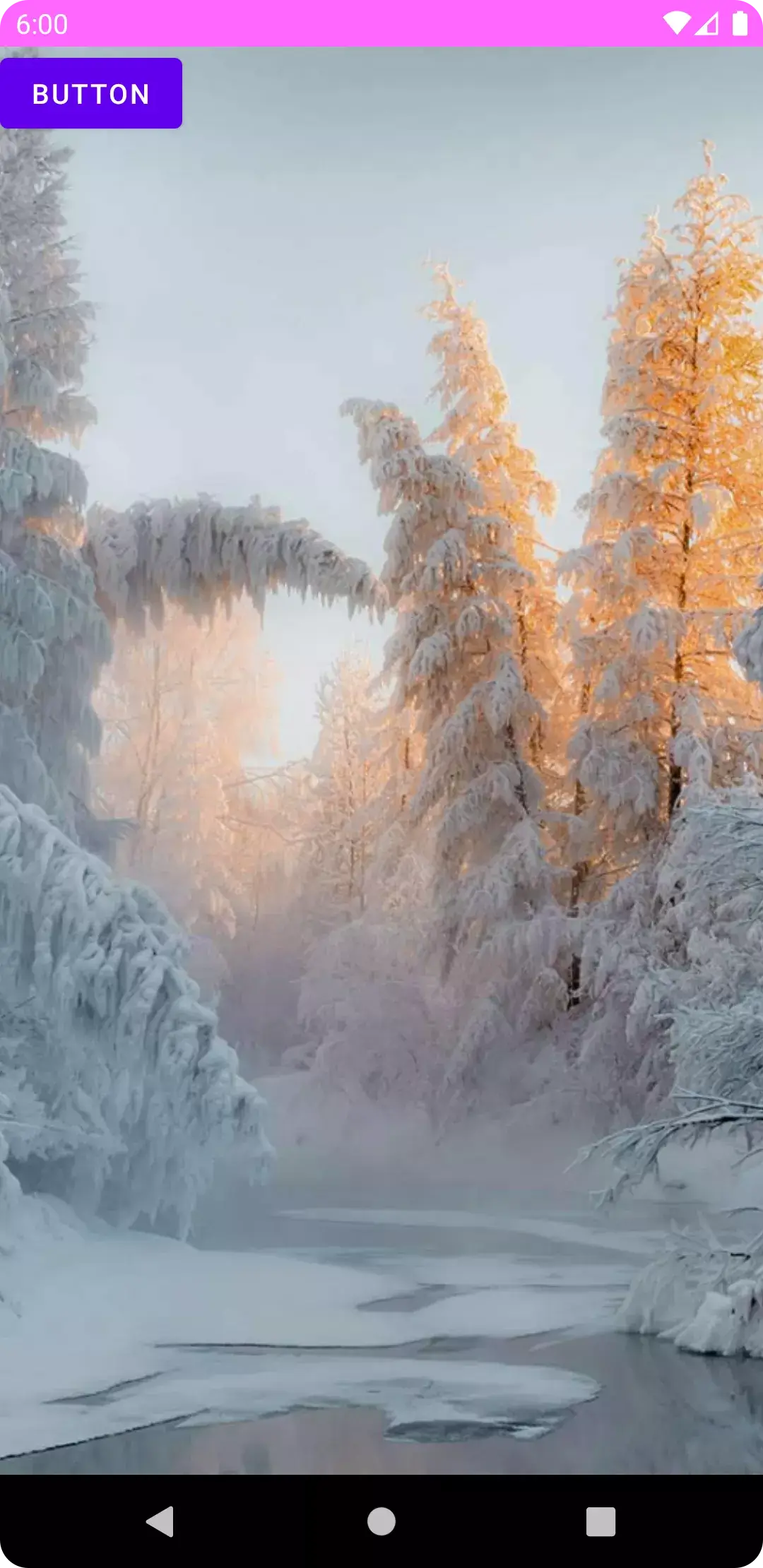

在 CoordinatorLayout 中再添加一个 ImageView

确实,图片是不会进入状态栏区域的,和我们之前所解释的理论相符合。

但是很明显,这并不是我们想要的效果,那么有什么办法可以解决呢?

这里我们可以借助其他布局来实现。在 Google 提供的诸多布局当中,并不是只有 CoordinatorLayout 会处理android:fitsSystemWindows属性,像 CollapsingToolbarLayout、DrawerLayout 也是会对这个属性做处理的。

现在对 activity_main.xml 进行如下修改:

<?xml version="1.0" encoding="utf-8"?>
<androidx.coordinatorlayout.widget.CoordinatorLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:background="#ff66ff"
    android:fitsSystemWindows="true">

    <com.google.android.material.appbar.CollapsingToolbarLayout
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:fitsSystemWindows="true">

        <ImageView
            android:layout_width="match_parent"
            android:layout_height="match_parent"
            android:scaleType="centerCrop"
            android:src="@drawable/bg"
            android:fitsSystemWindows="true"
            />

    </com.google.android.material.appbar.CollapsingToolbarLayout>

    <Button
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="Button"
        />

</androidx.coordinatorlayout.widget.CoordinatorLayout>

可以看到,这里我们在 ImageView 的外面又包裹了一层 CollapsingToolbarLayout,并且给 CollapsingToolbarLayout 也设置了 android:fitsSystemWindows 属性,这样 CollapsingToolbarLayout 就可以将内容延伸到状态栏区域了。

接着我们给 ImageView 同样设置了 android:fitsSystemWindows 属性,如此一来,就可以让图片显示在状态栏的背后了。

重新运行一下程序,效果如下图所示:

ImageView 同样设置了 android:fitsSystemWindows 属性

需要注意的是,CollapsingToolbarLayout 一定要结合着 CoordinatorLayout 一起使用,而不能单独使用。因为 CollapsingToolbarLayout 只会对内部控件的偏移距离做出调整,而不会像 CoordinatorLayout 那样调用setSystemUiVisibility()函数来开启沉浸式状态栏。

看到这里,相信大家都已经知道应该如何去实现沉浸式状态栏效果了。但是可能有的朋友会说,由于项目限制的原因,他们无法使用 CoordinatorLayout 或 CollapsingToolbarLayout,而是只能使用像 FrameLayout 或 LinearLayout 这样的传统布局,这种情况怎么办呢?

其实我们知道 CoordinatorLayout 实现沉浸式状态栏的原理之后,自然也就知道如何自己手动实现了,因为本质就是调用setSystemUiVisibility()函数。

现在我们将 activity_main.xml 改成用传统 FrameLayout 布局的写法:

<?xml version="1.0" encoding="utf-8"?>
<FrameLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:id="@+id/root_layout"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:background="#ff66ff">

    <ImageView
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:scaleType="centerCrop"
        android:src="@drawable/bg"
        />

    <Button
        android:id="@+id/button"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="Button"
        />

</FrameLayout>

为了实现沉浸式状态栏的效果,我们手动在 MainActivity 当中调用setSystemUiVisibility()函数,来将 FrameLayout 的内容延伸到状态栏区域:

class MainActivity : AppCompatActivity() {

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContentView(R.layout.activity_main)
        window.statusBarColor = Color.TRANSPARENT
        val frameLayout = findViewById<FrameLayout>(R.id.root_layout)
        frameLayout.systemUiVisibility = (SYSTEM_UI_FLAG_LAYOUT_STABLE
                or SYSTEM_UI_FLAG_LAYOUT_FULLSCREEN)
    }

}

这里提醒一点,setSystemUiVisibility()函数其实已经被废弃了。从 Android 11 开始,Google 提供了一个新的 API WindowInsetsController 来实现同样的功能,不过本篇文章就不往这方面展开了。

现在重新运行一下程序,效果如下图所示:

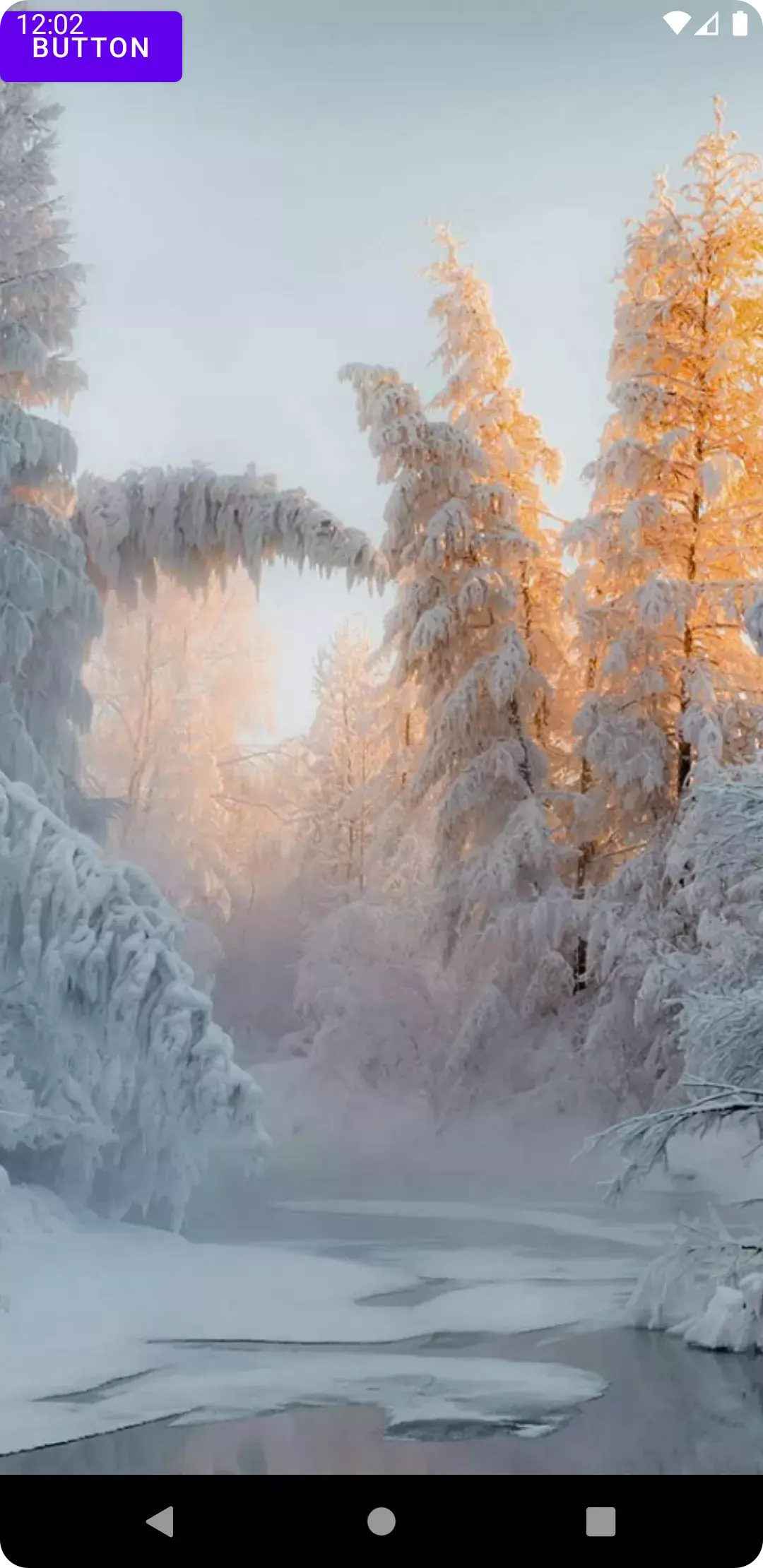

效果展示

可以看到,现在我们仍然实现了沉浸式状态栏的效果,但问题是 FrameLayout 中的按钮也延伸到状态栏区域了,这就是前面所说的可交互控件被状态栏遮挡的问题。

出现这个问题的原因也很好理解,因为之前我们是使用的 CoordinatorLayout 嘛,它已经帮我们考虑好到这些事情,自动会将内部的控件进行偏移。而现在 FrameLayout 显然是不会帮我们做这些事情的,所以我们得想办法自己解决。

这里其实可以借助setOnApplyWindowInsetsListener()函数去监听 WindowInsets 发生变化的事件,当有监听到发生变化时,我们可以读取顶部 Insets 的大小,然后对控件进行相应距离的偏移。

修改 MainActivity 中的代码,如下所示:

class MainActivity : AppCompatActivity() {

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContentView(R.layout.activity_main)
        window.statusBarColor = Color.TRANSPARENT
        val frameLayout = findViewById<FrameLayout>(R.id.root_layout)
        frameLayout.systemUiVisibility = (SYSTEM_UI_FLAG_LAYOUT_STABLE
                or SYSTEM_UI_FLAG_LAYOUT_FULLSCREEN)

        val button = findViewById<Button>(R.id.button)
        ViewCompat.setOnApplyWindowInsetsListener(button) { view, insets ->
            val params = view.layoutParams as FrameLayout.LayoutParams
            params.topMargin = insets.systemWindowInsetTop
            insets
        }
    }

}

可以看到,当监听到 WindowInsets 发生变化时,我们调用 systemWindowInsetTop 即可获取到状态栏的高度,然后对不需要延伸到状态栏区域的控件进行相应的偏移即可。

重新运行程序,效果如下图所示:

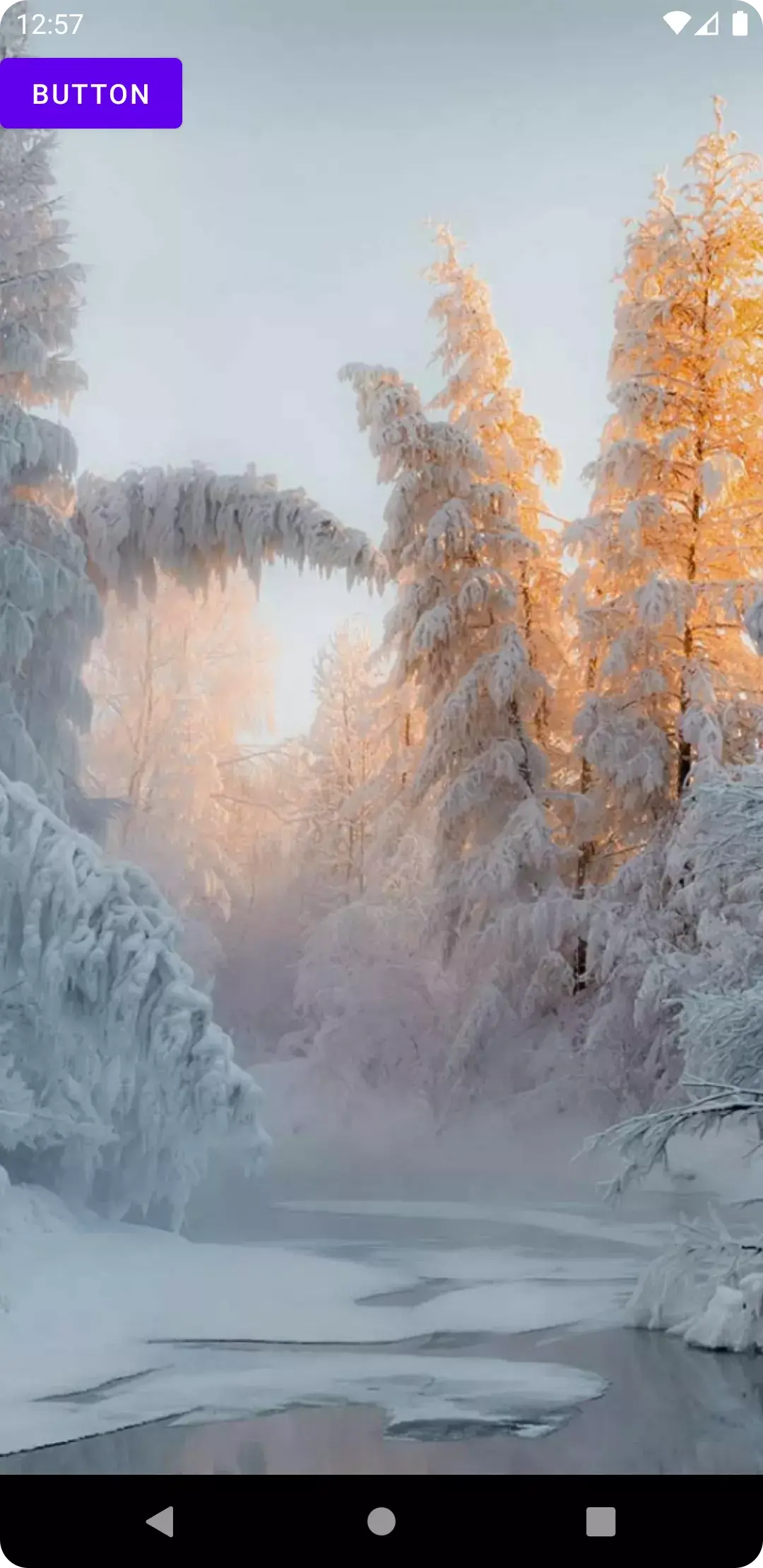

调用 systemWindowInsetTop 即可获取到状态栏的高度

好了,到这里为止,我们就将实现沉浸式状态栏背后的原理,以及具体的多种实现方式都介绍完了。

这次你学懂android:fitsSystemWindows属性了吗?
